Brr 30/Duetta

Brr 30/Duetta

Temperature-controlled cuvette holder with extended low temperature response for Horiba's Duetta Fluorescence and Absorbance Spectrometer
Product Overview

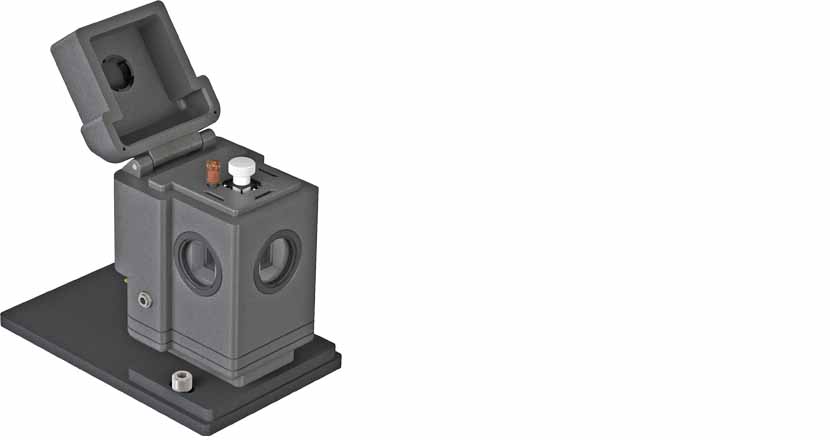

The Brr 30/Duetta is a temperature-controlled cuvette holder for use from +110 °C down to -55 °C. It is adapted for use in the Duetta™ Fluorescence and Absorbance Spectrometer from Horiba. The Brr 30/Duetta has three optical ports. Its operation is fully integrated into the software of the Duetta product. Use the Brr 30/Duetta to set and maintain precise sample temperatures and stir at a steady reproducible rate, while bathing the cuvette in a controlled gaseous environment. This product is provided with a windowed vest to enhance performance at low temperatures and minimize condensation that may form on the windows. Circulating water is used to remove heat from the Peltier heat exchanger. Control the Brr 30/Duetta, using the TC 1B Temperature Controller included in the purchase price. This product must be purchased from Horiba.

Product Features

Brr 30 – Temperature-controlled cuvette holder
Vest/Brr30 – Windowed Vest
SLITS/Brr30 – Optical Slits
TC 1B – Temperature Controller
Spectrophotometer sample tray
NIST-traceable calibration and performance data
Magnetic stir bar, tubing for water and dry gas, and cables

  • Technical Specifications
    Number of cuvettes controlled
    1
    Typical use
    Fluorescence
    Standard cuvette size (outside)
    12.5 mm x 12.5 mm
    Optical ports per cuvette
    3
    Optical port dimensions
    12 mm high x 10 mm wide
    Cuvette z-height
    15 mm
    Windowed vest available
    yes
    Factory set temperature range
    -55 °C to +110 °C
    Temperature range easily achievable
    -15 °C to +110 °C
    Range with low temperature option
    -55 °C to +110 °C
    Temperature precision
    ±0.02 °C
    Thermistor probes accepted
    Probe/10k-qX
    Magnetic stirring motor type
    Stepper
    Magnetic stirring speed range
    1-2500 rpm
    Default stirring speed
    1200 rpm
    Stirring speed best performance
    60-1800 rpm
  • Basic Package

    Brr 30 – Temperature-controlled cuvette holder
    Vest/Brr30 – Windowed Vest
    SLITS/Brr30 – Optical Slits
    TC 1B – Temperature Controller
    Spectrophotometer sample tray
    NIST-traceable calibration and performance data
    Magnetic stir bar, tubing for water and dry gas, and cables

  • Accessories
