qpod Absorbance Kit: temperature-controlled sample compartment with external TC 1 Temperature Controller and lenses for absorbance
Product Overview

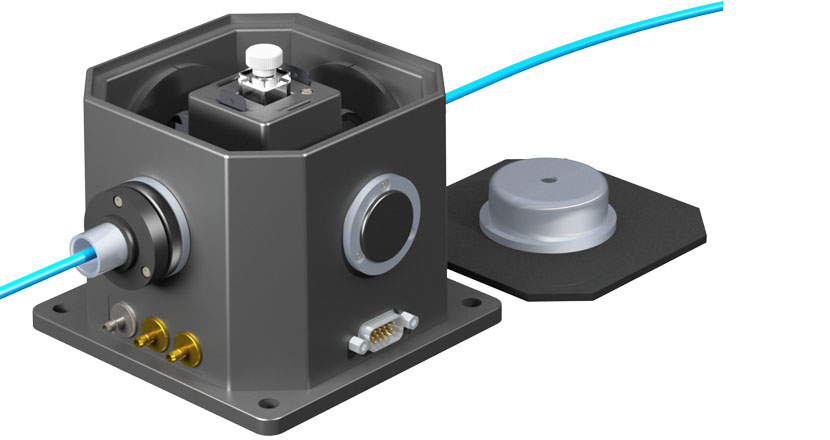

The qpod/ABS kit combines the qpod sample compartment with a pair of collimating lenses, an optimal system for using fiber optics to measure the absorbance of a temperature-controlled solution. The qpod is a roughly square box about 120 mm on a side and 90 mm high. In the center is a temperature-controlled tower with optical ports on each of four sides and slit holders to control optical access. Each of the four sides of the qpod has a mounting ring for optical components, thermally stable and precisely aligned with the tower. Attach fiber optic cables to the lens systems and screw them in place on opposite sides of the qpod. Illuminate through one cable and a collimated beam about 5 mm in diameter will pass through the cuvette and focus onto the collection fiber. A dry gas purge of the compartment enables easy use at low temperatures down to -30 °C. The standard qpod readily achieves +110 °C. Purchase the extended temperature option to go to +150 degrees. Operate the qpod on a lab bench or build it into your own full spectroscopy system. For computer control, add program T-App or write your own program utilizing simple text commands to control the TC 1 Temperature Controller.

Product Features

Sample compartment with four ports for mounting optics
Rapid, precise control Peltier temperature control
lens package for absorbance measurements
Optical slits for controlling light intensity
Variable speed magnetic stirring
Dry gas purge for entire optical chamber
Thermometer probe input for sample temperature
NIST-traceable temperature calibration

  • Technical Specifications
    Number of cuvettes controlled
    Typical use
    Standard cuvette size (outside)
    12.5 mm x 12.5 mm
    Optical ports per cuvette
    Optical port dimensions
    10 mm diameter round
    Built-in optical slit holders
    4 per cuvette, Collimating lens 6 mm diameter, 18 mm focal length
    Collimating lens
    6 mm diameter, 18 mm focal length
    Imaging lens pair
    Each 12 mm diameter, 30 mm focal length
    Standard lens material
    Broad band AR coated fused-silica
    Front surface spherical mirror
    30 mm radius
    Standard mirror surface
    UV-enhanced aluminum
    Standard fiber optic connector
    SMA 905
    Normal factory set temperature range
    -40 °C to +105 °C
    Extended factory set temperature range
    -55 °C to +150 °C
    Extended temperature range achievable
    -45 °C to +150 °C
    Temperature precision
    ±0.02 °C
    Temperature accuracy
    ±0.15 °C from 0 ⁰C to +80 ⁰C
    Temperature reproducibility
    Better than ±0.07 °C
    Thermistor probes accepted
    Series 400 or Series 500
    Magnetic stirring motor type
    Magnetic stirring speed range
    1-2500 rpm
    Default stirring speed
    1200 rpm
    Stirring speed best performance
    60-1800 rpm
  • Basic Package

    qpod – Temperature-controlled sample compartment
    TC 1/Single – Temperature Controller
    QCL-UV (2x) – Pair of collimating lenses
    Bath 10 – Bucket, pump and fittings to provide circulating water to the Peltier unit
    NIST-traceable calibration and performance data
    Tool kit, containing a hex screw driver for optical adjustments, a stir bar for use in the cuvette a set assorted optical slits to limit optic access to the cuvette plastic blanks to cover unused optical ports on the qpod 2e
