t2 Sport/8452

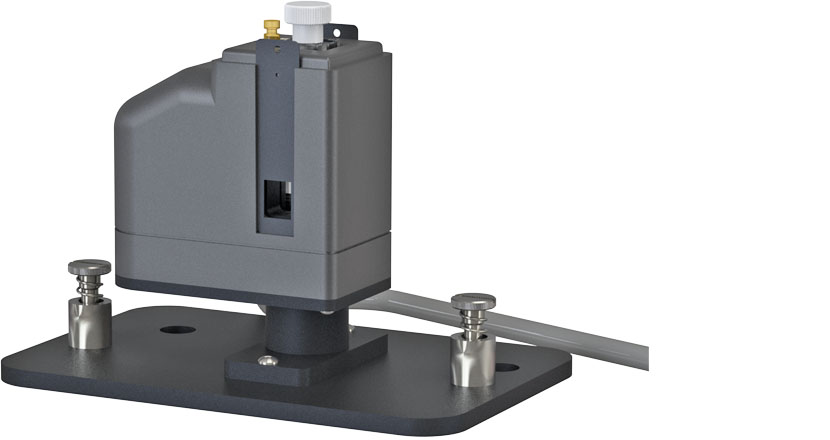

Peltier-driven temperature-controlled cuvette holder for the Olis Computerized HP 8452 Diode Array
Product Overview

The t2 Sport/8452 is an inexpensive, temperature-controlled cuvette holder for a single cuvette. It is easy to mount in the open sample compartment of the HP 8452 Diode Array UV-Vis spectrophotometer.

The t2 Sport/8452 is ideal for work in the biological range of 0 °C to 110 °C. To work at colder temperatures down to -15 °C, purge the unit with dry gas to prevent condensation. Questions? Quantum Northwest offers a complimentary downloadable guide to working with your benchtop spectrometer at high and low sample cuvette temperatures.

It is easy to operate the t2 Sport/8452 using the TC 1 Temperature Controller, included in the purchase price. The sample temperature, stirring speed, and temperature ramp rate may be controlled manually using the TC 1 menu control buttons on the front panel, or by using Quantum Northwest’s computer control software, T-App, available for purchase. If you use ChemStation to operate the HP 8452, you can simultaneously use T-App to control the t2 Sport/8452.

No matter how you choose to control the t2 Sport/8452, you will enjoy the power to capture absorbance spectra at precisely maintained sample temperatures, and to observe how sample absorbance changes with temperature. With the t2 Sport/8452, a wide range of Peltier-based temperature control is now available for your existing Diode Array UV-Vis spectrophotometer. Easily plan and execute experiments that were not previously possible.

Many experiments will benefit from the t2 Sport/8452 alone. If you have greater needs, our partnership with OLIS, Inc. of Bogart, GA can enable you to assemble a new system. Let OLIS upcycle the HP 8452 to capabilities far beyond those it had when new. Retire ChemStation and upgrade to OLIS SpectralWorks. This Windows 7/10 program includes software for 2D and 3D analysis of kinetic and equilibrium data. Achieve the full potential of your HP 8452 with OLIS and Quantum Northwest. Contact us for more information.

Product Features

Rapid, precise Peltier temperature control
Variable speed magnetic stirring
Dry gas purge for work at low temperature
Mounting base and post for the HP 8452
Cuvette lifter for removal of cuvette
Probe input for sample temperature
NIST-traceable temperature calibration

  • Technical Specifications
    Number of cuvettes controlled
    Typical use
    Standard cuvette size (outside)
    12.5 mm x 12.5 mm
    Optical ports per cuvette
    Optical port dimensions
    12 mm high x 10 mm wide

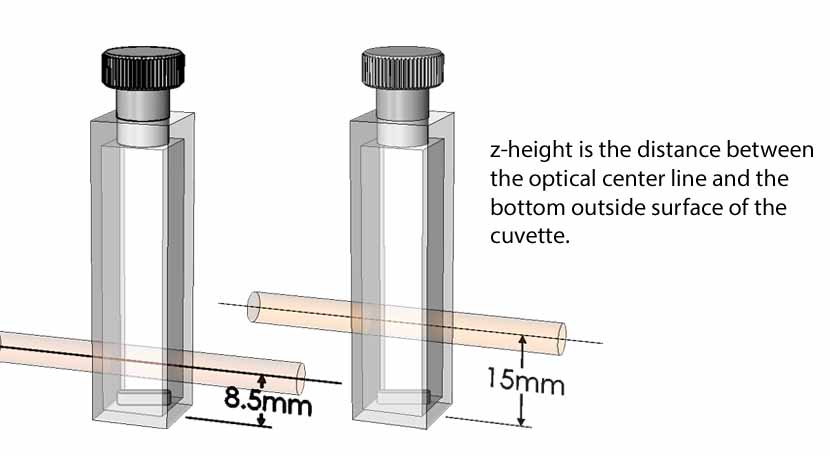

    Cuvette z-height
    8.5 mm or 15 mm
    Windowed jacket available
    Factory set temperature range
    -40 °C to +110 °C
    Temperature range easily achievable
    -15 °C to +110 °C
    Temperature precision
    ±0.02 °C
    Temperature accuracy
    Better than ±0.15 °C from 0 ⁰C to +80 ⁰C
    Accuracy full range
    Better than ±0.3 ⁰C from ‐15 ⁰C to +110 ⁰C
    Magnetic stirring motor type
    Magnetic stirring speed range
    1-2500 rpm
    Default stirring speed
    1200 rpm
    Stirring speed best performance
    60-1800 rpm
  • Basic Package

    t2 Sport – Temperature-controlled cuvette holder
    TC 1/Single – Temperature Controller
    Base plate and post (standard z-height = 15 mm)
    BATH 10 – Circulator

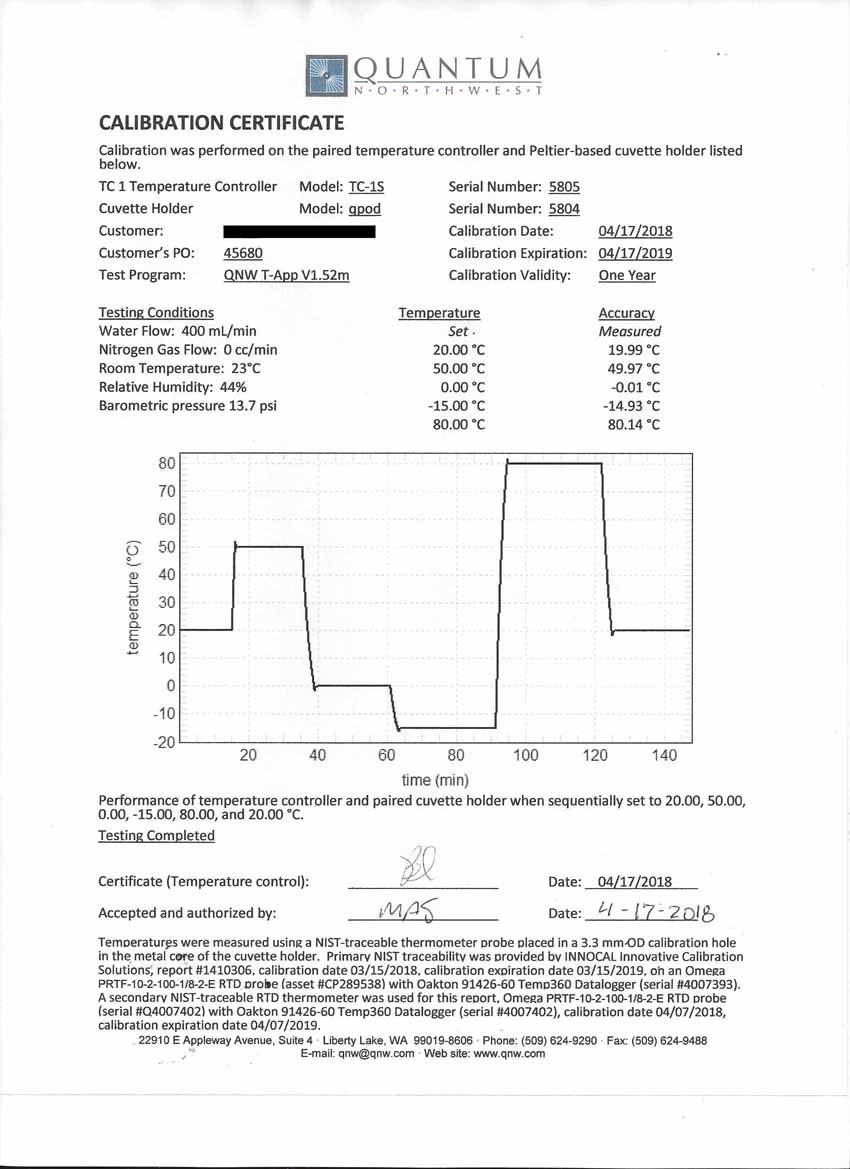

    NIST-traceable calibration and performance data
    Accessories – Magnetic stir bar, tubing and cables

  • Accessories
