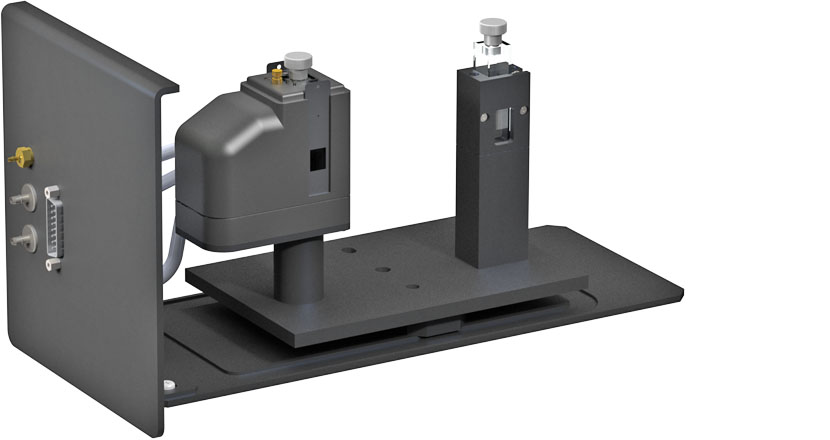

t2 Sport/Dynamica

Peltier-driven temperature control for Dynamica Halo DB-30 UV/Visible Double Beam Spectrophotometer
Product Overview

The t2 Sport/Dynamica consists of a pair of cuvette holders, an inexpensive, compact, temperature-controlled cuvette holder in the forward sample position, and an uncontrolled holder for the reference cuvette in the rear. Use it for temperature ranges of about -15 °C to 110 °C. It is ideal for most biological studies, either to observe absorbance spectra at precisely maintained temperatures, or for temperature ramping, to observe how absorbance changes with temperature. The t2 Sport/Dynamica replaces the sample tray (base and front panel) of the spectrophotometer, with utilities brought conveniently to the front panel. An uncontrolled holder is provided for the reference cuvette. Control temperature through the spectrophotometer software.

Product Features

Rapid, precise Peltier temperature control
Variable speed magnetic stirring
Dry gas purge for work at low temperature
Complete sample tray for mounting
Cuvette lifter for removal of cuvette
Probe input for sample temperature
NIST-traceable temperature calibration
Fully integrated software control

  • Technical Specifications
    Number of cuvettes controlled
    1
    Typical use
    Absorbance
    Standard cuvette size (outside)
    12.5 mm x 12.5 mm
    Optical ports per cuvette
    2
    Optical port dimensions
    12 mm high x 10 mm wide
    Cuvette z-height
    8.5 mm or 15 mm
    Windowed jacket available
    no
    Factory set temperature range
    -40 °C to +110 °C
    Temperature range easily achievable
    -15 °C to +110 °C
    Temperature precision
    ±0.02 °C
    Temperature accuracy
    Better than ±0.15 °C from 0 ⁰C to +80 ⁰C
    Accuracy full range
    Better than ±0.3 ⁰C from ‐15 ⁰C to +110 ⁰C
    Magnetic stirring motor type
    Stepper
    Magnetic stirring speed range
    1-2500 rpm
    Default stirring speed
    1200 rpm
    Stirring speed best performance
    60-1800 rpm
  • Basic Package

    t2 Sport – Temperature-controlled cuvette holder
    TC 1/Single – Temperature Controller
    Sample Tray – Mounting post (standard z-height = 15 mm), base plate, front panel
    Reference cuvette holder without temperature control
    BATH 10 – Circulator
    NIST-traceable calibration and performance data
    Accessories – Magnetic stir bar, tubing and cables

  • Accessories
