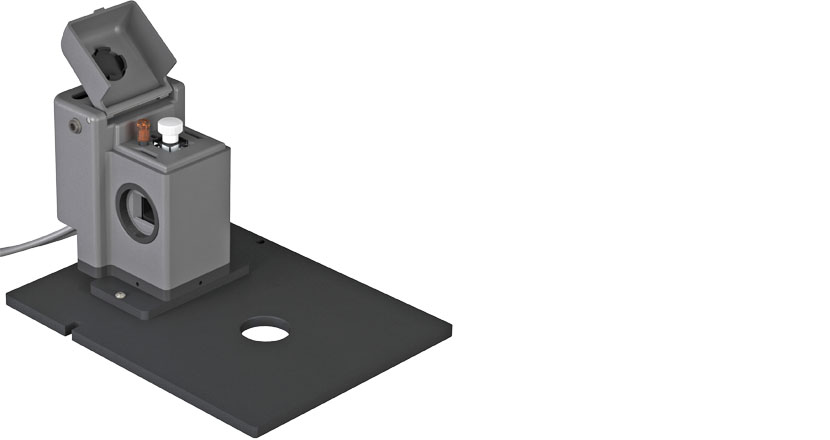

t2 Sport/EVO

Peltier-driven temperature control for the Evolution 300 and 600 Spectrophotometers
Product Overview

The t2 Sport/EVO is an inexpensive, compact cuvette holder. Use it for temperature ranges of about -15 °C to 110 °C. It is ideal for most biological studies to observe absorbance spectra at precisely maintained temperatures. The t2 Sport/EVO mounts in place of the forward sample cuvette holder with utilities conveniently routed under the front panel of the spectrophotometer. Operate the TC 1/Single Temperature Controller using the menu button or control via optional program T-App.

Product Features

Rapid, precise Peltier temperature control
Variable speed magnetic stirring
Dry gas purge for work at low temperature
Base and post for mounting in the spectrophotometer
Cuvette lifter for removal of cuvette
Probe input for sample temperature
NIST-traceable temperature calibration

  • Technical Specifications
    Number of cuvettes controlled
    1
    Typical use
    Absorbance
    Standard cuvette size (outside)
    12.5 mm x 12.5 mm
    Optical ports per cuvette
    2
    Optical port dimensions
    12 mm high x 10 mm wide
    Cuvette z-height
    8.5 mm or 15 mm
    Windowed jacket available
    no
    Factory set temperature range
    -40 °C to +110 °C
    Temperature range easily achievable
    -15 °C to +110 °C
    Temperature precision
    ±0.02 °C
    Temperature accuracy
    Better than ±0.15 °C from 0 ⁰C to +80 ⁰C
    Accuracy full range
    Better than ±0.3 ⁰C from ‐15 ⁰C to +110 ⁰C
    Magnetic stirring motor type
    Stepper
    Magnetic stirring speed range
    1-2500 rpm
    Default stirring speed
    1200 rpm
    Stirring speed best performance
    60-1800 rpm
  • Basic Package

    t2 Sport – Temperature-controlled cuvette holder
    TC 1/Single – Temperature Controller
    Base plate and post (standard z-height = 15 mm)
    BATH 10 – Circulator
    NIST-traceable calibration and performance data
    Accessories – Magnetic stir bar, tubing and cables

  • Accessories
