CARR/Pellet

Sample carriage for 13 mm diameter pellets or similar size samples

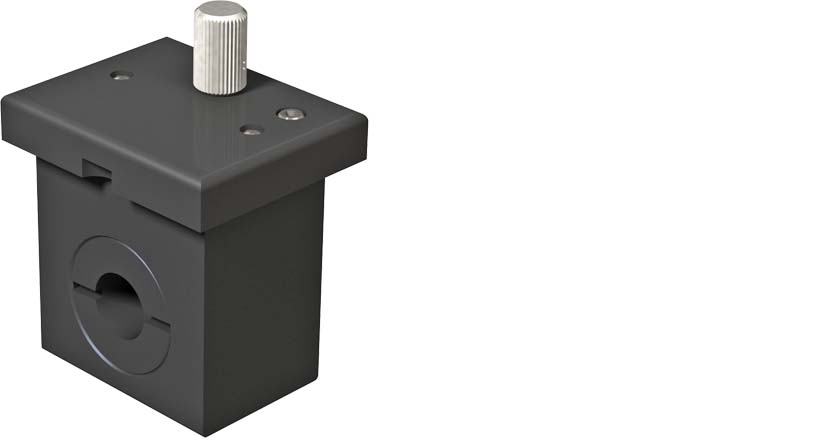

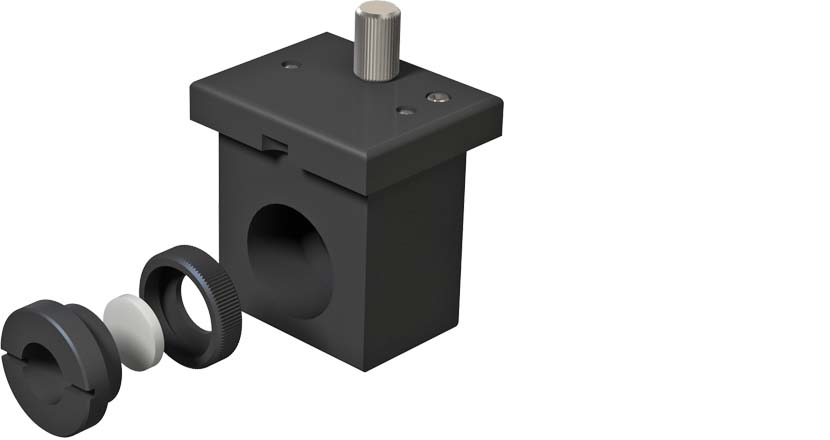

This carriage holds a 13-mm diameter KBr pellet or substrate of similar size in the versatile CD 250 sample holder. The pellet is placed its support and held in place by a cap. This assembly is then screwed into place on the carriage. The carriage is placed in the CD 250. Captured tie-down screws allow the user to screw the holder in position to make good thermal contact with the temperature-controlled base. Since this cuvette has circular windows that must remain open to the spectrometer beam, it is essential add windows to the CD 250 to block convection (see product Window/FS15 as an option).
