Thermistor Probe with long lead for use with the TC 1 Temperature Controller

Use the long version Probe/10k-L with a TC 1 Temperature Controller. This probe has the same construction as the Probe/10k, except that the fine lead wires are about 0.6 m long and useful for threading through long circuitous pathways.

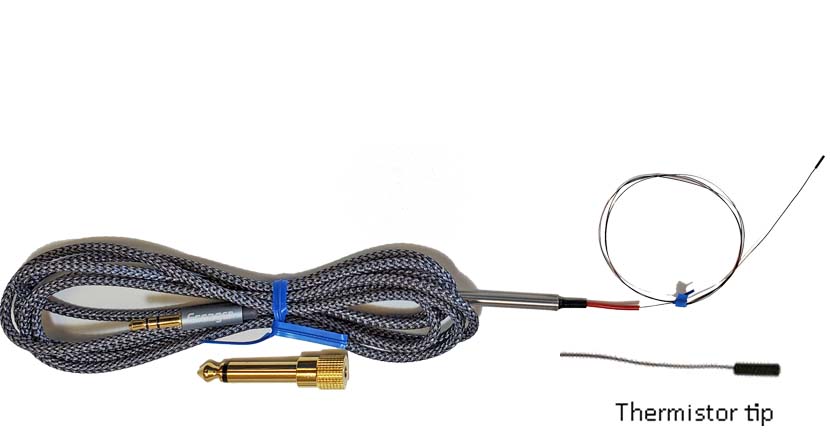

The thermistor tip is 9.52 mm long and has a diameter of 0.762 mm. The tip is at the end of a pair of thin 150 mm lead wires. These leads are in turn connected 0.8 m of flexible cable terminated with a 1/8-inch miniplug. A 1/8-inch miniplug to ¼-inch phone plug adapter is included. Plug the miniplug into the adapter and the Probe/10k becomes a standard “Series 500” thermistor probe. Insert the ¼-inch plug into the jack on the back of a TC 1/Single, TC 1/Dual or TC 1/Multi Temperature Controller. When the probe is inserted, the controller displays the probe voltage. Insert the probe tip into the cuvette to measure temperature.

The sensor is a 10kohm thermistor (at 25 °C) with Kapton (polyimide) sleeve. The probe is tested and calibrated for use over a temperature range of -20 °C to +110 °C.
