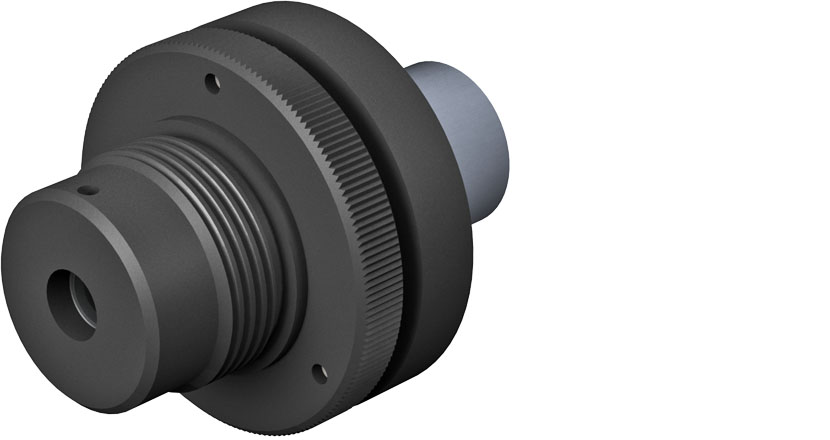

QCL/T6

Collimating lens for absorption measurements

This is a 6-mm diameter broadband AR-coated lens assembly. Placed on opposite sides of the cuvette, this lens first collimates the light from the source fiber into a 5-mm diameter beam, which passes through the cuvette. The second lens focuses this collimated beam on the collection fiber.
