SuperNeutron 6

Versatile-cell Peltier-driven temperature control for neutron scattering
Product Overview

The SuperNeutron 6 provides temperature control from below zero to 150 °C for six cuvettes in a single, long cuvette carriage. This carriage is powered by a single TC 1/Single Temperature Controller operating at 24 Volts. Since the cuvettes are closer in this configuration, only narrower scattering angles are available.

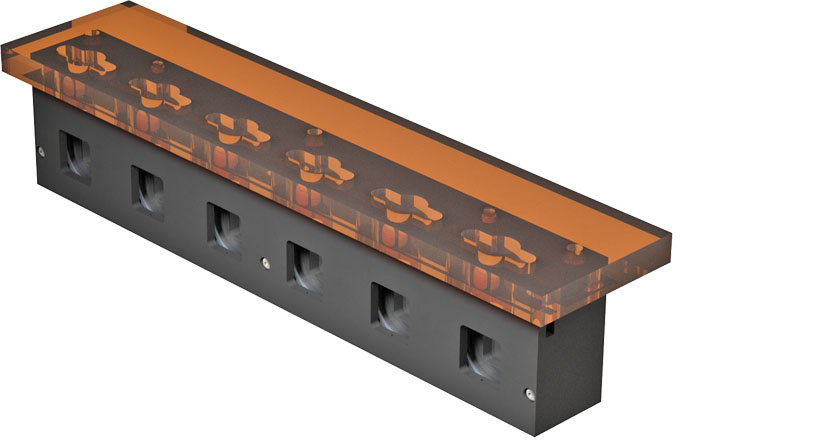

Sample carriages are currently available for six banjo-style cuvettes or for standar rectangular cuvettes that are 10 mm wide (inside dimension) by 1, 2, 5, or 10 mm thick. The carriages may be screwed down in place for good thermal contact. Windows at the beam entrance and behind the cuvette, provide a temperature-controlled chamber. The exit window is enlarged to permit measurement of scattered neutrons, although not as wide an angle as in our other neutron scattering products.

Product Features

Rapid, precise temperature control
Fused silica entrance and exit windows
Chamber for mounting NIST-style sample carriage

  • Technical Specifications
    Number of cuvettes controlled
    6
    Number of temperatures controlled
    1
    Typical use
    Neutron scattering
    Standard cuvette size (outside)
    Banjo with 1 or 2 mm path length
    Beam ports per cuvette
    2
    Distance between cuvettes
    42.29 mm
    Entrance port diameter
    17 mm
    Exit port diameter
    34.9 mm
    Full scattering angle (from cell center)
    97.0°
    Normal factory set temperature range
    -55 °C to +150 °C
    Temperature range easily achievable
    -15 °C to +150 °C
    Range with special techniques
    -40 °C to +150 °C
    Temperature precision
    ±0.02 °C
    Temperature accuracy
    Better than ±0.3 °C
    Temperature reproducibility
    Better than ±0.3 °C
    Thermistor probes accepted
    Series 400 or Series 500
  • Basic Package

    SuperNeutron 6 sample holder
    One TC 1/Single Temperature Controller
    Cuvette carriage for six 1-mm path banjo cells
    BATH 10 Circulator
    NIST-traceable calibration and performance data
    Accessories – Tubing, cables
