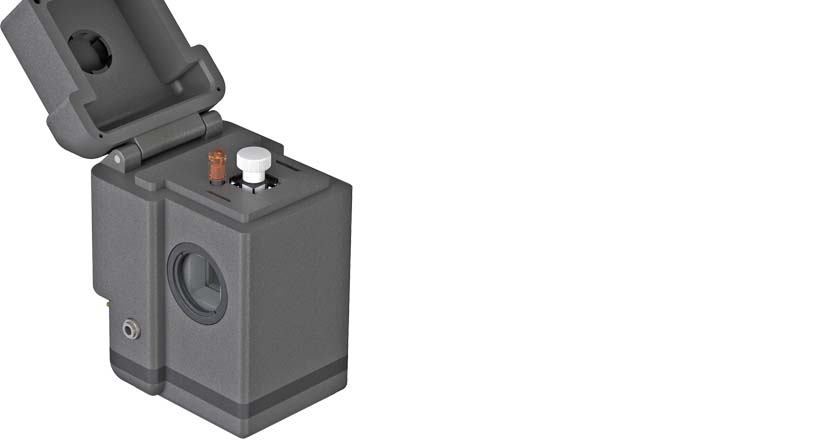

Brr 20

User-customizable, Temperature-controlled cuvette holder with extended low temperature response and two optical ports
Product Overview

The Brr 20 is a temperature controlled cuvette holder designed for low temperature applications. With optical ports on each side of the cuvette, use the Brr 20 for absorbance measurements or any experiment that can be performed using the 180° beam path.

This standard model has an aluminum baseplate that allows for endless user-customizable mounting options. We also have mounting options compatible with a wide array of spectrophotometers from different manufacturers, or contact us today for a custom mounting solution to meet your experimental needs! Check out the available options below!

The Brr 20 is ideal for work in temperature ranges from -55 °C to 110 °C. Circulating coolant (usually water) is used to remove heat from the Peltier heat exchanger. The Brr 20 will maintain precise sample temperatures and stir at a steady reproducible rate, with the ability to flood the optics in a controlled gaseous environment while working at lower temperatures to maintain optical clarity. Use the Brr 20 to observe absorbance spectra at precisely maintained temperatures, or for temperature ramping, to observe how absorbance changes with temperature.

Purchase the extended temperature option to extend the maximum temperature and turn your unit into the ultimate, do- anything machine with over 200°C  of temperature control from -55°C to 150°C.

It is easy to operate the Brr 20 using the TC 1 Temperature Controller, included in the purchase price. The sample temperature, stirring speed, and temperature ramp rate may be controlled manually using the TC 1 menu control buttons on the front panel, or by using Quantum Northwest’s computer control software,  T-App, available for purchase.

Product Features

Rapid, precise Peltier temperature control -55 °C to +110 °C
Precise stepper-motor-driven magnetic stirring
Insulated lid to improve temperature stability
Lifter to aid cuvette removal
Threaded inserts to mount windows or filters
Optional extended temperature range
Insulated windowed vest included for use at very low temperatures
Dry gas purge for work at low temperature
Probe input for sample temperature
NIST-traceable temperature calibration

  • Technical Specifications
    Number of cuvettes controlled
    1
    Typical use
    Absorbance
    Standard cuvette size (outside)
    12.5 mm x 12.5 mm
    Optical ports per cuvette
    2
    Optical port dimensions
    12 mm high x 10 mm wide
    Cuvette z-height
    15 mm
    Windowed vest available
    yes
    Factory set temperature range
    -55 °C to +110 °C
    Temperature range easily achievable
    -55 °C to +110 °C
    Temperature precision
    ±0.02 °C
    Thermistor probes accepted
    Probe/10k-Brr
    Magnetic stirring motor type
    Stepper
    Magnetic stirring speed range
    1-2500 rpm
    Default stirring speed
    1200 rpm
    Stirring speed best performance
    60-1800 rpm
  • Basic Package

    Brr 20 – Temperature controlled cuvette holder

    BATH 10 – Circulator System

    TC-1Br – Temperature Controller
    NIST-traceable calibration and performance data
    Magnetic stir bar, tubing for water and dry gas, and cables
